Static Pressure Automatic Moulding Line of Green Sand

Short Description:

Static pressure moulding technical refers to airflow with hydraulic multi-piston squeeze compaction technology, according to the difficulty of compaction, can choose only hydraulic multi-piston squeeze compaction or airflow and hydraulic multi-piston squeeze compaction. Static Pressure has following advantages. ◆High ability for compaction sand, rigid and dense mould, suitable to manufacture of complex castings. ◆Dimensional stability and better surface roughness. ◆High efficiency of moulding...


Product Detail

Product Tags

Static pressure moulding technical refers to airflow with hydraulic multi-piston squeeze compaction technology, according to the difficulty of compaction, can choose only hydraulic multi-piston squeeze compaction or airflow and hydraulic multi-piston squeeze compaction.

Static Pressure has following advantages.
◆High ability for compaction sand, rigid and dense mould, suitable to manufacture of complex castings.
◆Dimensional stability and better surface roughness.
◆High efficiency of moulding.
◆Mould plate with high rate of utilization.
◆Good working condition and labour saving.
Kailong Machinery is committed to providing customers with the most valuable Static Pressure Automatic Moulding Line, to ensure the moulding line work effectively and reliably by high performance of configuration.
–The mechanical parts of main and auxiliary equipments machining by CNC machine, the necessary heat treatment to guarantee precision and service life.
–PLC from SimensS7, with touch screen and network Ethernet etc.
–Servo system from SEW or Siemens and and Variable-Frequency Drive from Rexroth.
–Hydraulic valve of moulding machine from Rexroth, Hydraulic Cylinder from China famous brand.
–Low-voltage electrical components from Schneide.
–Hydraulic Seals from international brand.
–Bearing from China famous brand (HRB/LYC/ZWZ).

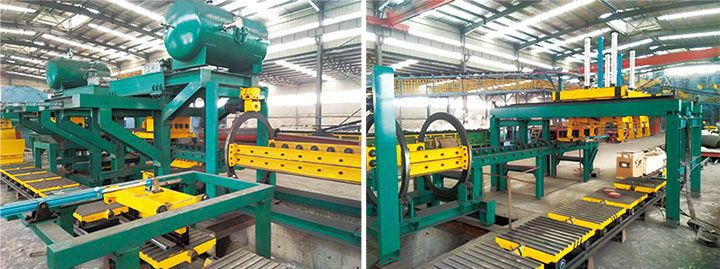

2016516119340

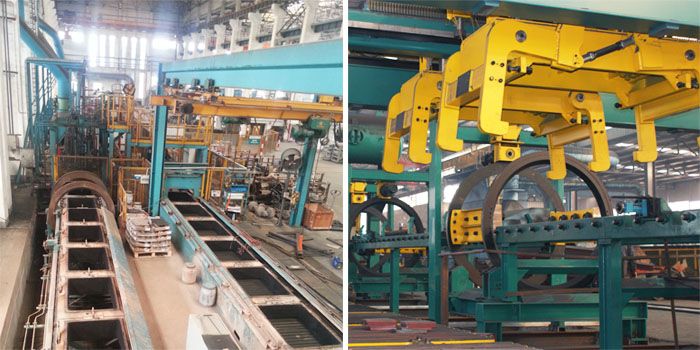

20165171358430
20165311627180

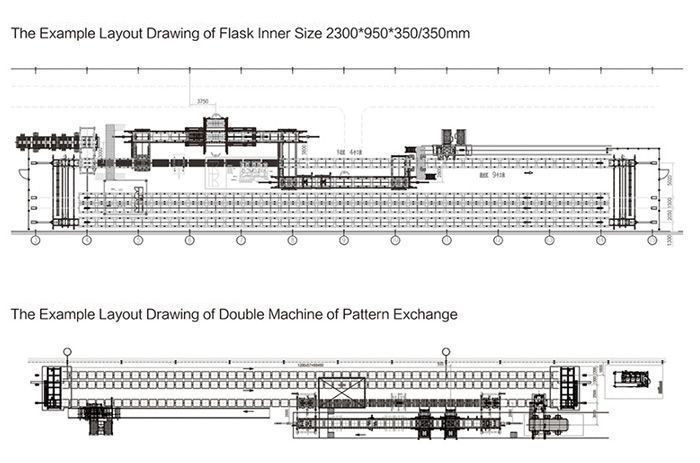

The Example Layout Drawing of Single-Station Machine of Pattern Turnover:
20165161112340
Typical Specification of Single-Station Moulding Line

Item Model
KSP80 KSP100 KSP120 KSP230
Flask Inner Size(mm) 800x600x200/200 1000x1000x250/250 1200x800x350/350 2300x950x350/350
Moulding Speed(sec/cycle) 30 30 36 60
Specific Squeeze Pressure(kgf/cm2) 8~12 8~12 8~12 8~12

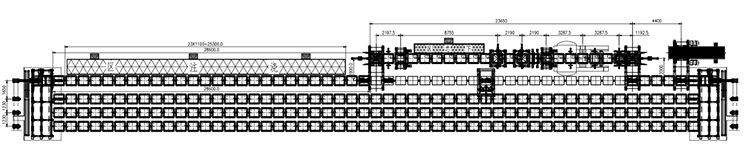

The Example Layout Drawing of Double-Station Machine of Pattern Exchange

11111

Typical Specification of Double-Station Moulding Line

Item Model
SPD80 SPD100 SPD120
Flask Inner Size(mm)  800x600x200/200 1000x1000x250/250 1200x800x350/350
Moulding Speed(sec/cycle) 20 20 24
Specific Squeeze Pressure(kgf/cm2) 8~12 8~12 8~12
